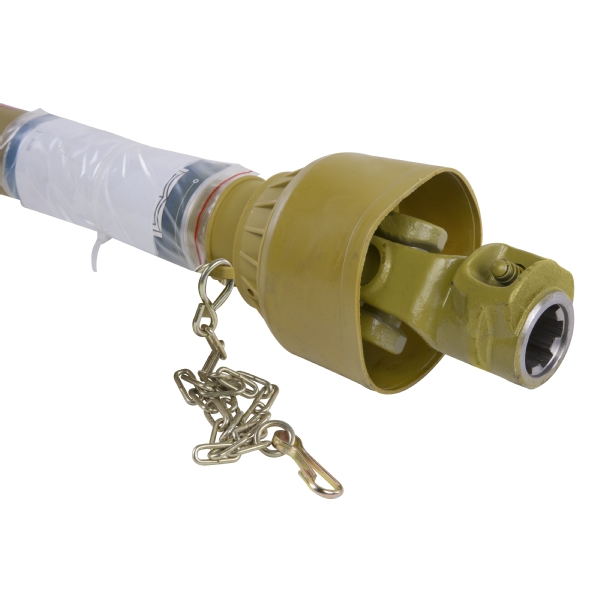

PTO SHAFT ECO T10 x 800mm 1.3/8in x 1.3/8in

• 90° hinge angle joint when not in operation
• High power transmission capacity joint with small swing diameter
• Easily modifiable profile tube with all spare parts easily replaceable
• Overall length is measured from outside to outside when shaft is closed full

End Type 11 3/8in - 6 Spline

End Type 21 3/8in - 6 Spline

SeriesT1

Universal Joint22 x 55mm

Tube Profile3 Corner

Inner Tube Size1.04 (3.5 x 26mm)

Outer Tube Size1.03 (2.6 x 33mm)

Length800mm

Weight5.84kg
